OSG

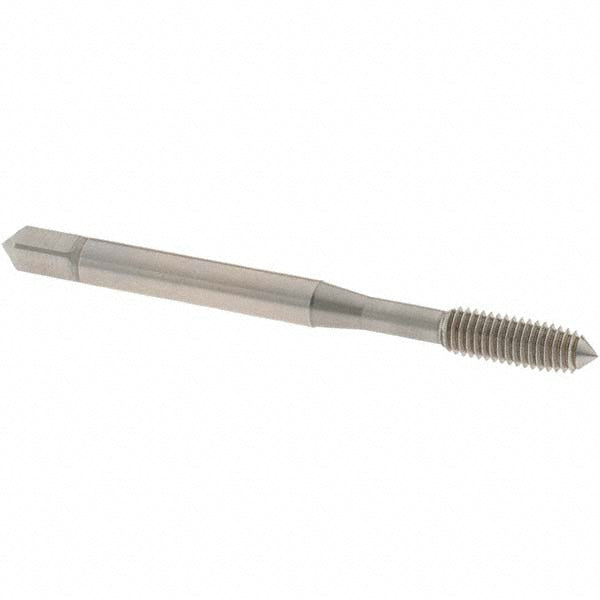

#10-32 UNF High-Speed Steel-CO Tap - OSG 1400121500
MFR# 1400121500Series 14001
$14.67List $18.81
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-32
Description
The OSG 1400121500 is a #10-32 UNF High-Speed Steel-CO tap.
Specifications
ApplicationThrough-Hole Threading
ChamferPlug
Chamfered threads4-4.5P
Class of fit2B
Coolant throughNo
MaterialHigh-Speed Steel-CO
Material applicationSteel; Non-Ferrous Metal
Material application codeP; N
Overall length in2-3/8
Shank diameter0.1940
Square size0.1520
Tapping depth0.8660
Thread directionRight Hand
Thread length0.4920
Thread limitH6
Thread size in#10-32
Thread standardUNF
Trade nameHY-PRO NRT
