OSG

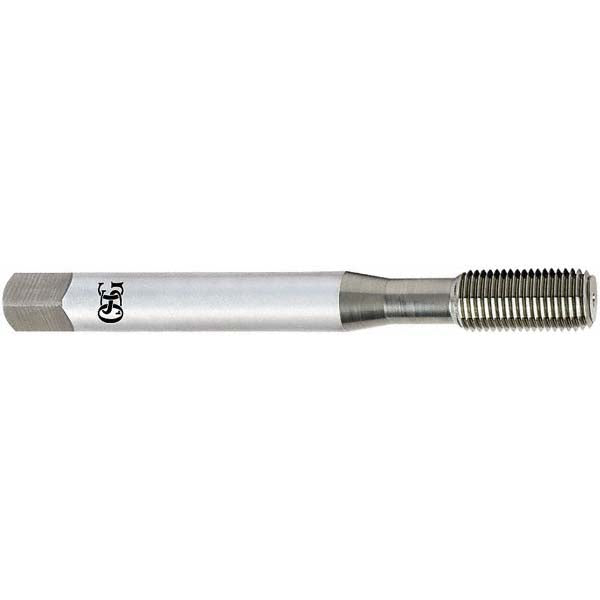

1/4-20 UNC High-Speed Steel-CO Tap, CrN - OSG 1400126106
MFR# 1400126106Series 14001
$19.30List $24.76
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/4-20
CoatingCrN
Description
The OSG 1400126106 is a 1/4-20 UNC High-Speed Steel-CO tap with a CrN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishCrN
Coolant throughNo
MaterialHigh-Speed Steel-CO
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in2-3/8
Shank diameter0.2550
Square size0.1910
Tapping depth0.9330
Thread directionRight Hand
Thread length0.4960
Thread limitH3
Thread size in1/4-20
Thread standardUNC
Trade nameHY-PRO NRT
