OSG
5/16-24 UNF Cobalt Tap, TiN - OSG 1400133105
MFR# 1400133105Series 14001
$25.09List $32.17
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-24
CoatingTiN
Description

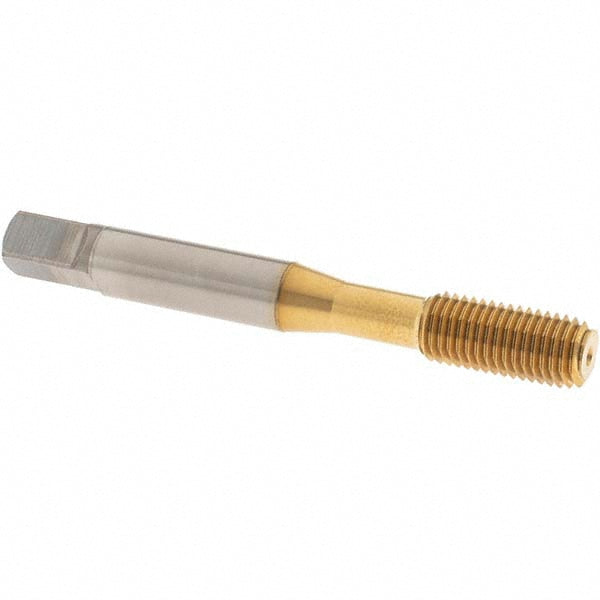

The OSG 1400133105 is a 5/16-24 UNF Cobalt tap with a TiN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in2-32/32
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth1.1260
Threads per inch24
Thread directionRight Hand
Thread length0.6654
Thread limitH6
Thread size in5/16-24
Thread standardUNF
Trade nameHY-PRO NRT
