OSG

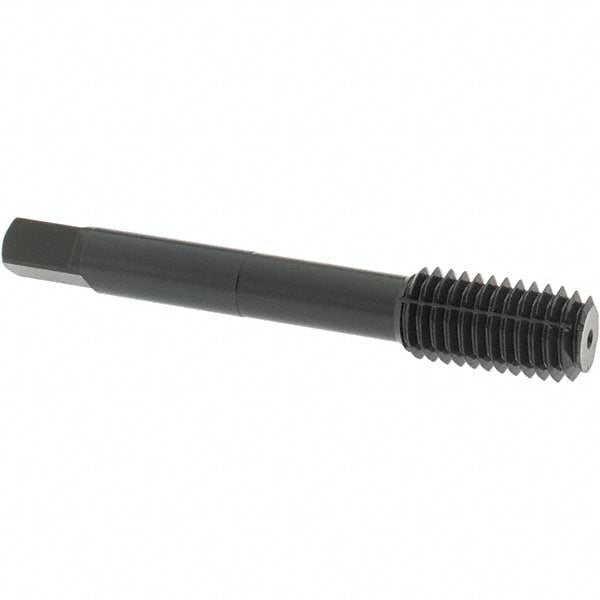

1/2-13 UNC Cobalt Tap, Steam Oxide - OSG 1400142801
MFR# 1400142801Series 14001
$41.44List $53.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size1/2-13
CoatingSteam Oxide
Description
The OSG 1400142801 is a 1/2-13 UNC Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length in3-3/8
Shank diameter0.3670
Square length0.4375
Square size0.2750
Tapping depth1.9330
Threads per inch13
Thread directionRight Hand
Thread length0.9213
Thread limitH5
Thread size in1/2-13
Thread standardUNC
Trade nameHY-PRO NRT
