OSG

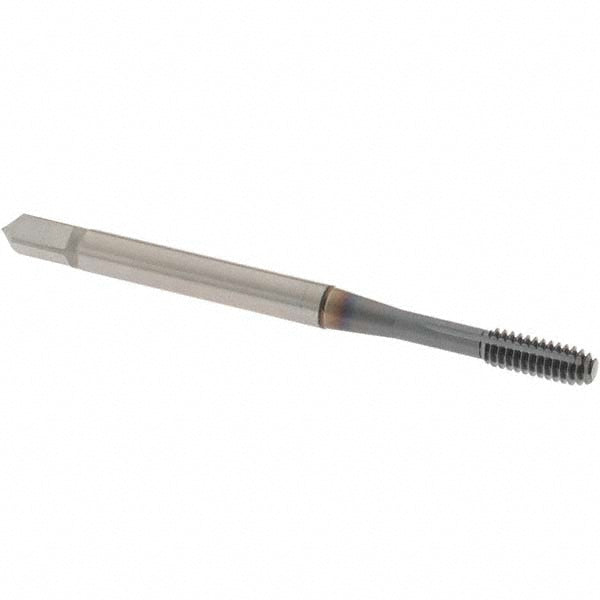

#5-40 UNC Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405002908
MFR# 1405002908Series 14050
$42.34List $54.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#5-40
CoatingTiCN
Description
The OSG 1405002908 is a #5-40 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit3B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in1-15/16
Shank diameter0.1410
Square length0.1875
Square size0.1100
Tapping depth0.6260
Threads per inch40
Thread directionRight Hand
Thread length0.2992
Thread limitH3
Thread size in#5-40
Thread standardUNC
Trade nameEXOTAP VP-NRT
