OSG
#8-32 UNC Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405004308
MFR# 1405004308Series 14050
$43.05List $55.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#8-32
CoatingTiCN
Description

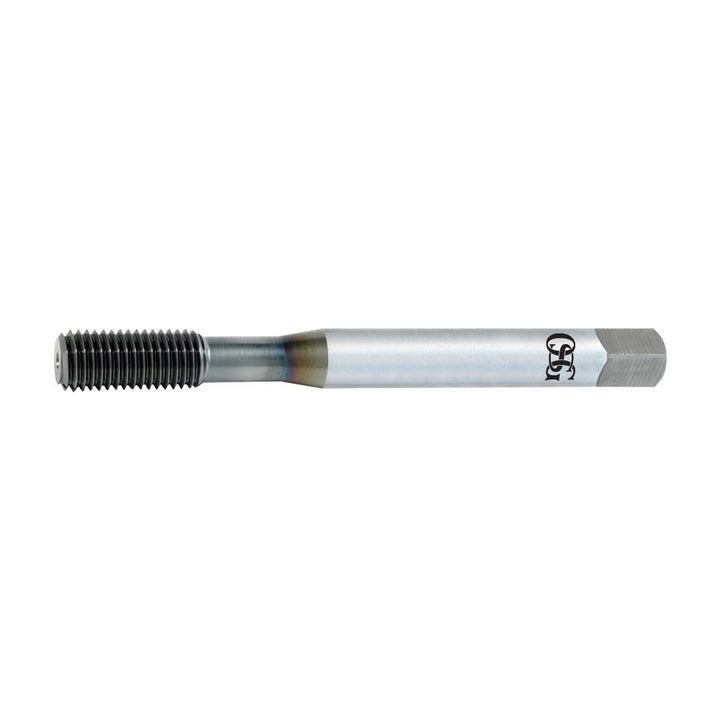

The OSG 1405004308 is a #8-32 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1-1.5P
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in2-1/8
Shank diameter0.1680
Square length0.2500
Square size0.1310
Tapping depth0.7520
Threads per inch32
Thread directionRight Hand
Thread length0.3740
Thread limitH6
Thread size in#8-32
Thread standardUNC
Trade nameEXOTAP VP-NRT
