OSG

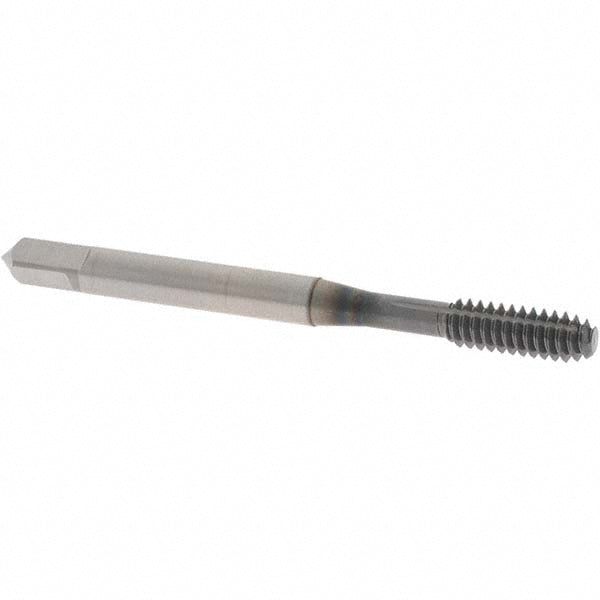

#10-24 UNC Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405005208
MFR# 1405005208Series 14050
$44.17List $56.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#10-24
CoatingTiCN
Description
The OSG 1405005208 is a #10-24 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in2-3/8
Shank diameter0.1940
Square length0.2500
Square size0.1520
Tapping depth0.8660
Threads per inch24
Thread directionRight Hand
Thread length0.4921
Thread limitH3
Thread size in#10-24
Thread standardUNC
Trade nameEXOTAP VP-NRT
