OSG
#12-24 UNC Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405006508
MFR# 1405006508Series 14050
$46.43List $59.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size#12-24
CoatingTiCN
Description

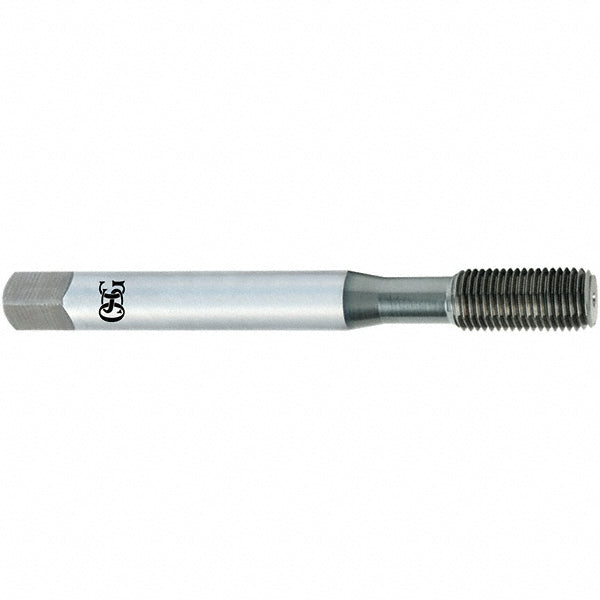

The OSG 1405006508 is a #12-24 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1-1.5P
Class of fit2B
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in2-3/8
Shank diameter0.2200
Square length0.2813
Square size0.1650
Tapping depth0.9330
Threads per inch24
Thread directionRight Hand
Thread length0.4961
Thread limitH7
Thread size in#12-24
Thread standardUNC
Trade nameEXOTAP VP-NRT
