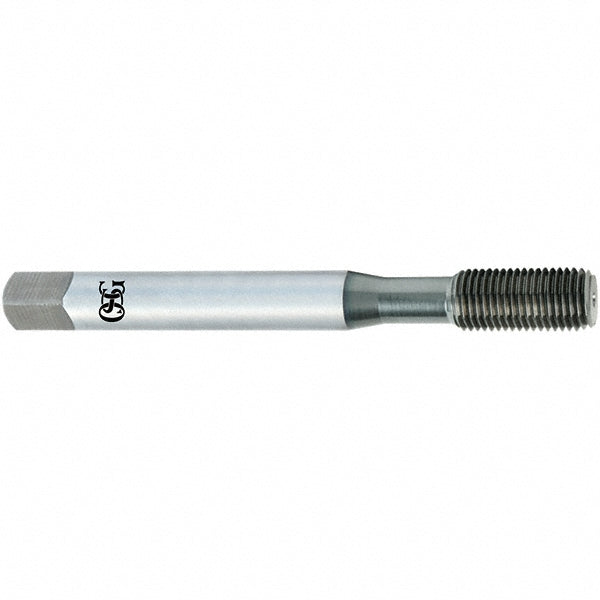

5/16-18 UNC Powdered Metal High-Speed Steel Tap, TiCN - OSG 1405008808
MFR# 1405008808Series 14050
$56.48List $72.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Thread size5/16-18
CoatingTiCN
Description
The OSG 1405008808 is a 5/16-18 UNC Powdered Metal High-Speed Steel tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferBottoming
Chamfered threads1-1.5P
Coating finishTiCN
Coolant throughNo
MaterialPowdered Metal High-Speed Steel
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; M; N
Overall length in2-23/32
Shank diameter0.3180
Square length0.3750
Square size0.2380
Tapping depth1.1260
Threads per inch18
Thread directionRight Hand
Thread length0.6654
Thread limitH9
Thread size in5/16-18
Thread standardUNC
Trade nameEXOTAP VP-NRT
