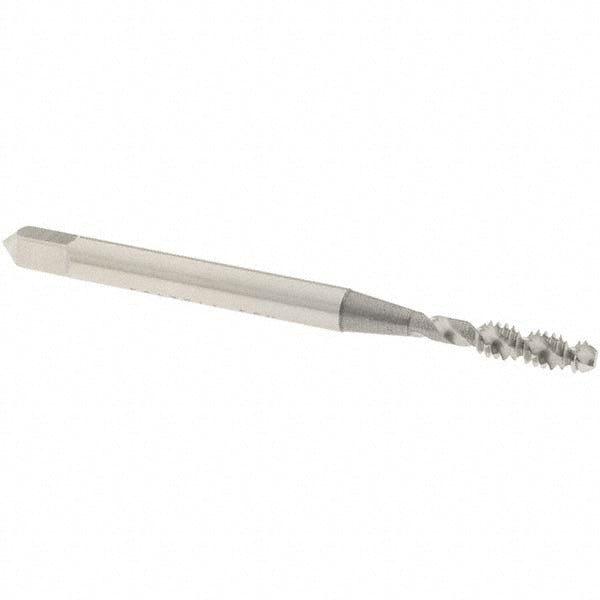

#4-40 UNC High-Speed Steel Tap - OSG 1406500
MFR# 1406500Series 107
$26.76List $34.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
Description
The OSG 1406500 is a #4-40 UNC High-Speed Steel tap. 2 flutes.
Specifications
ChamferBottoming
Class of fit2B; 3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.535
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch40
Thread directionRight Hand
Thread length0.326
Thread limitH2
Thread size in#4-40
Thread standardUNC
