OSG

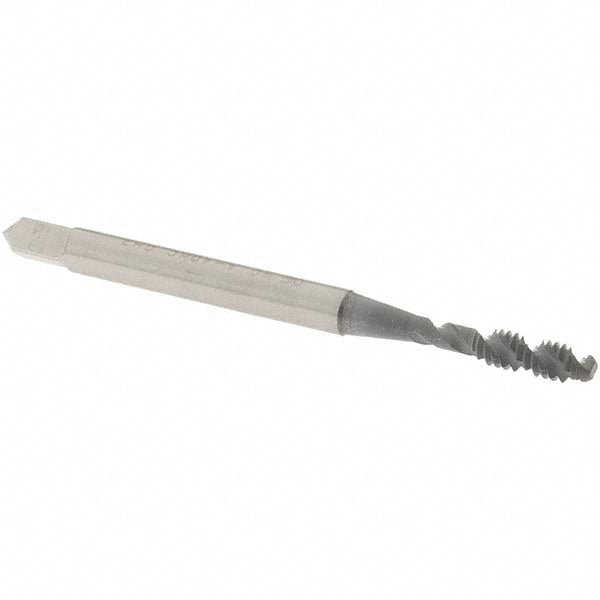

#4-40 UNC High-Speed Steel Tap, elektraLUBE - OSG 1406502
MFR# 1406502Series 107
$28.54List $36.61
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#4-40
CoatingelektraLUBE
Description
The OSG 1406502 is a #4-40 UNC High-Speed Steel tap with a elektraLUBE finish. 2 flutes.
Specifications
ChamferBottoming
Class of fit2B; 3B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length4.5
Number of flutes2
Overall length in1-7/8
OversizeNo
Shank diameter1.894
Thread directionRight Hand
Thread limitH2
Thread size in#4-40
Thread standardUNC
