OSG

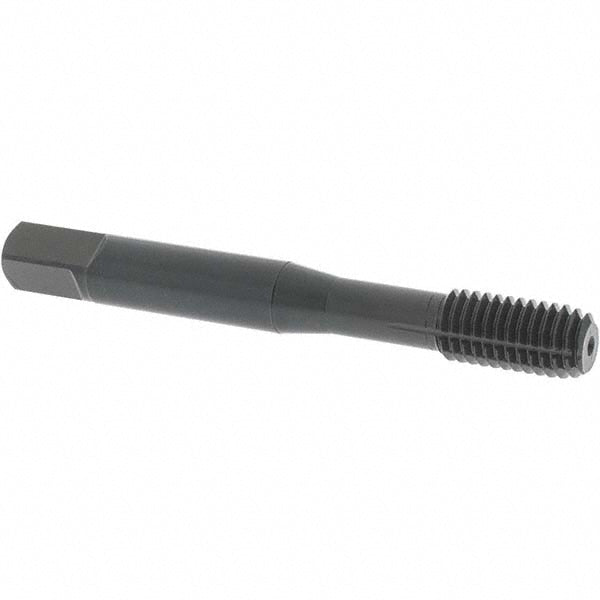

M8x1.25 Metric Coarse Cobalt Tap, Steam Oxide - OSG 1410104401
MFR# 1410104401Series 14101
$17.06List $21.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingSteam Oxide
Description
The OSG 1410104401 is a Metric Coarse Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit4H
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length2.7165
Shank diameter0.3180
Square length (mm)9.53
Square size0.2380
Tapping depth1.1260
Thread directionRight Hand
Thread length0.5906
Thread limitD5
Thread size (mm)M8x1.25
Thread standardMetric Coarse
Trade nameHY-PRO NRT
