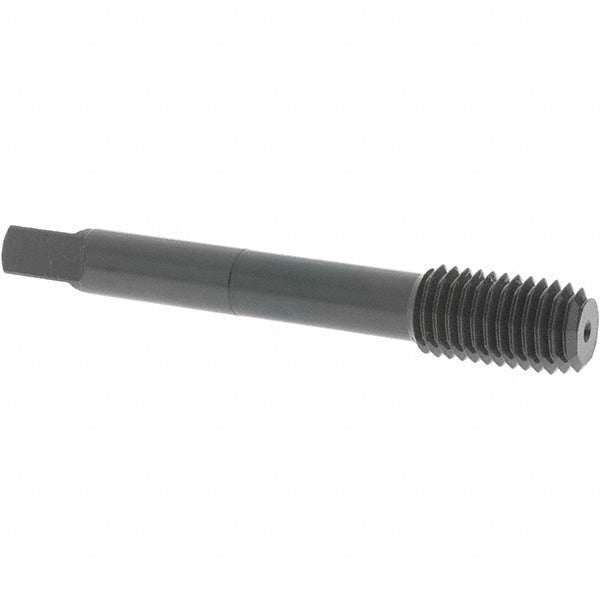

M12x1.75 Metric Coarse Cobalt Tap, Steam Oxide - OSG 1410105601
MFR# 1410105601Series 14101
$41.44List $53.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingSteam Oxide
Description
The OSG 1410105601 is a Metric Coarse Cobalt tap with a Steam Oxide finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Class of fit4H
Coating finishSteam Oxide
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length3.3465
Shank diameter0.3670
Square length (mm)11.11
Square size0.2756
Tapping depth1.9331
Thread directionRight Hand
Thread length0.8268
Thread limitD6
Thread size (mm)M12x1.75
Thread standardMetric Coarse
Trade nameHY-PRO NRT
