OSG

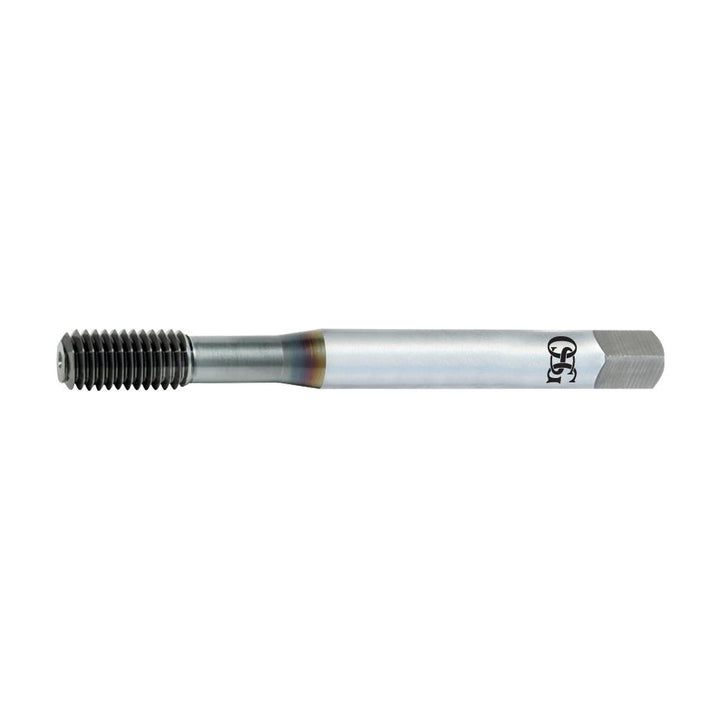

M3x0.5 Metric Cobalt Tap, TiCN - OSG 1410107000
MFR# 1410107000Series 14101
$17.15List $22.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 1410107000 is a Metric Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length1.9291
Shank diameter0.1410
Square length (mm)4.76
Square size0.1100
Tapping depth0.6299
Thread directionRight Hand
Thread length0.2441
Thread limitD6
Thread size (mm)M3x0.5
Thread standardMetric
Trade nameHY-PRO NRT
