OSG

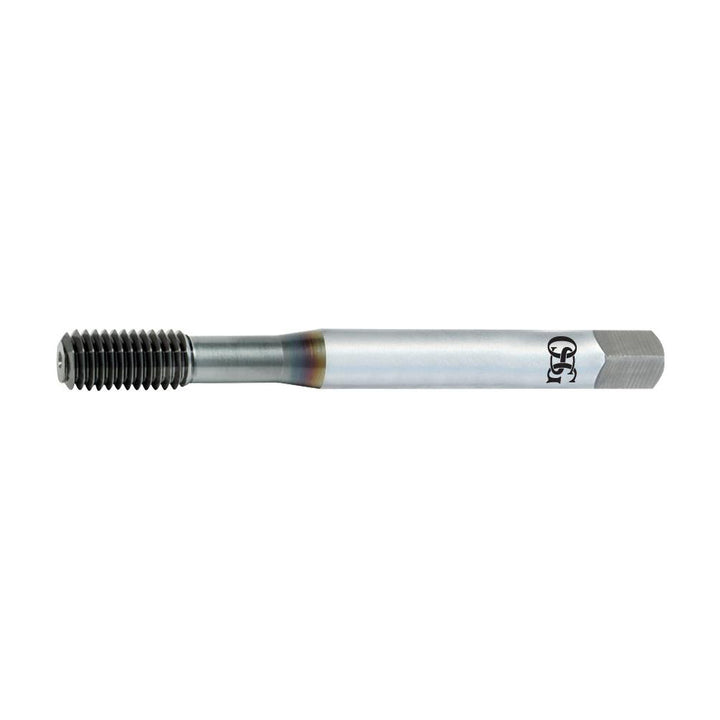

M10x1.5 Metric Cobalt Tap, TiCN - OSG 1410110100
MFR# 1410110100Series 14101
$20.88List $26.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
CoatingTiCN
Description
The OSG 1410110100 is a Metric Cobalt tap with a TiCN finish.
Specifications
ApplicationBlind Hole Threading
ChamferModified Bottoming
Chamfered threads2-2.5P
Coating finishTiCN
Coolant throughNo
MaterialCobalt
Material applicationAlloy Steel; Aluminum; Carbon Steel; Die Steel; Hardened Steel; Stainless Steel
Material application codeP; N
Overall length2.9134
Shank diameter0.3810
Square length (mm)11.11
Square size0.2860
Tapping depth1.2520
Thread directionRight Hand
Thread length0.7087
Thread limitD11
Thread size (mm)M10x1.5
Thread standardMetric
Trade nameHY-PRO NRT
