OSG

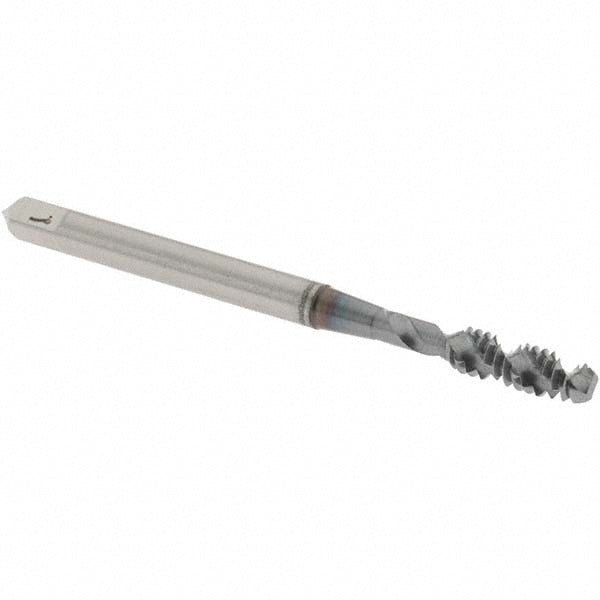

#6-32 UNC High-Speed Steel Tap, TiCN - OSG 1412508
MFR# 1412508Series 107
$28.72List $36.84
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Thread size#6-32
CoatingTiCN
Description
The OSG 1412508 is a #6-32 UNC High-Speed Steel tap with a TiCN finish. 2 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.685
Number of flutes2
Overall length in2
OversizeNo
Shank diameter0.141
Square length0.1875
Square size0.11
Threads per inch32
Thread directionRight Hand
Thread length0.397
Thread limitH3
Thread size in#6-32
Thread standardUNC
