OSG

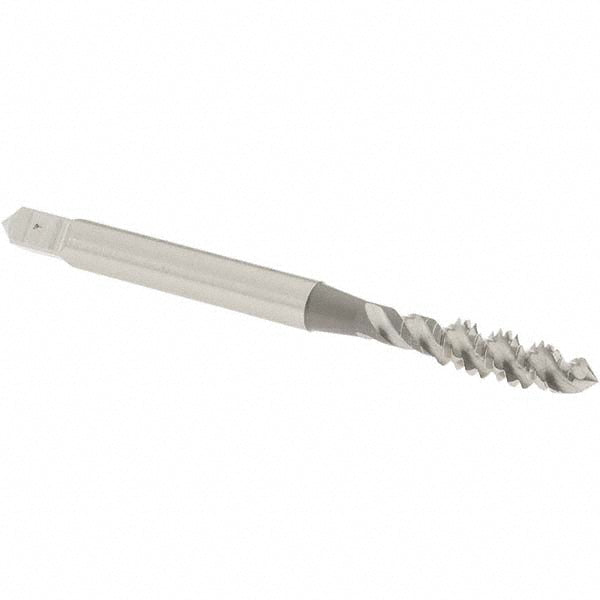

#10-24 UNC High-Speed Steel Tap - OSG 1413200
MFR# 1413200Series 107
$21.74List $27.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-24
Description
The OSG 1413200 is a #10-24 UNC High-Speed Steel tap. 3 flutes.
Specifications
ChamferPlug
Class of fit2B; 3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.874
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch24
Thread directionRight Hand
Thread length0.511
Thread limitH3
Thread size in#10-24
Thread standardUNC
