OSG

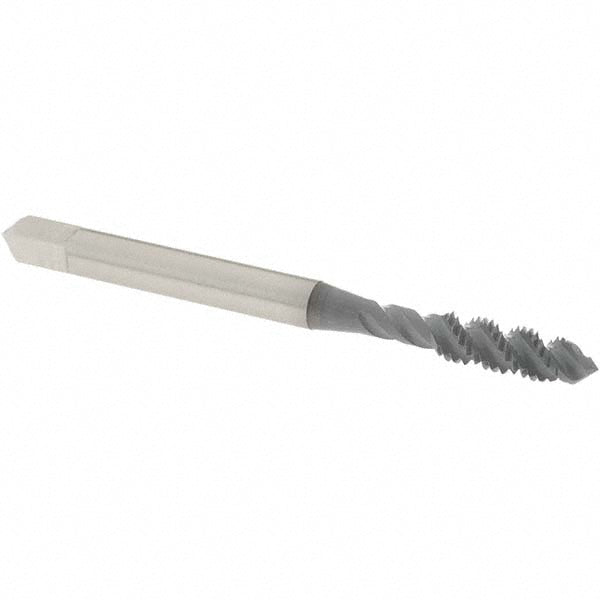

#10-32 UNF High-Speed Steel Tap, elektraLUBE - OSG 1413402
MFR# 1413402Series 107
$23.01List $29.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingelektraLUBE
Description
The OSG 1413402 is a #10-32 UNF High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)15.999999999999998
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter (mm)3.5814
Square length (mm)4.7625
Square size (mm)2.794
Thread directionRight Hand
Thread limitH3
Thread size in#10-32
Thread standardUNF
