OSG

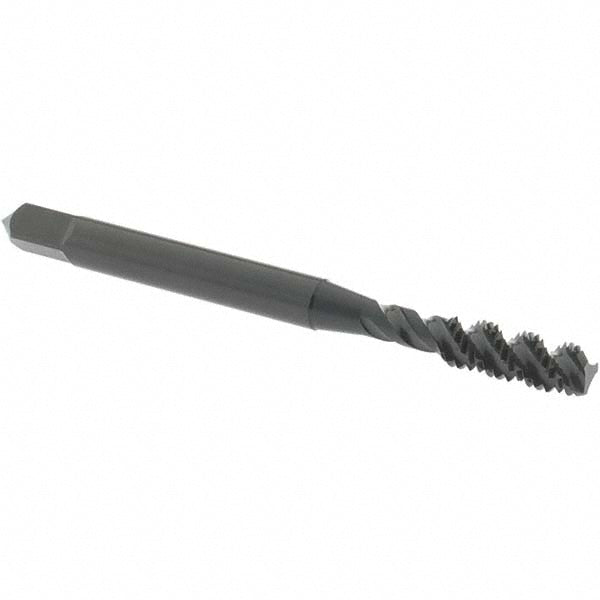

#10-32 UNF High-Speed Steel Tap, Steam Oxide - OSG 1413501
MFR# 1413501Series 107
$24.35List $30.68
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size#10-32
CoatingSteam Oxide
Description
The OSG 1413501 is a #10-32 UNF High-Speed Steel tap with a Steam Oxide finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit2B
Coating finishSteam Oxide
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.874
Number of flutes3
Overall length in2-3/8
OversizeNo
Shank diameter0.194
Square length0.25
Square size0.152
Threads per inch32
Thread directionRight Hand
Thread length0.511
Thread limitH3
Thread size in#10-32
Thread standardUNF
