OSG

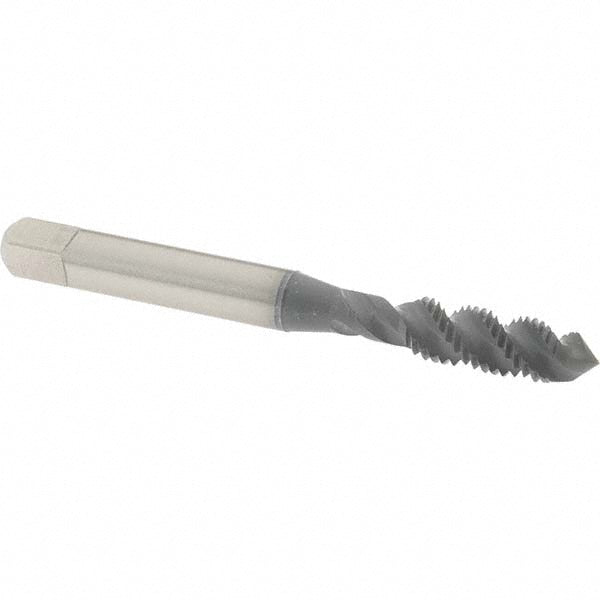

1/4-28 UNF High-Speed Steel Tap, elektraLUBE - OSG 1430202
MFR# 1430202Series 107
$25.19List $32.31
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/4-28
CoatingelektraLUBE
Description
The OSG 1430202 is a 1/4-28 UNF High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)22.2
Number of flutes3
Overall length in2-1/2
OversizeNo
Shank diameter (mm)4.9276
Square length (mm)6.35
Square size (mm)3.868
Thread directionRight Hand
Thread limitH3
Thread size in1/4-28
Thread standardUNF
