OSG

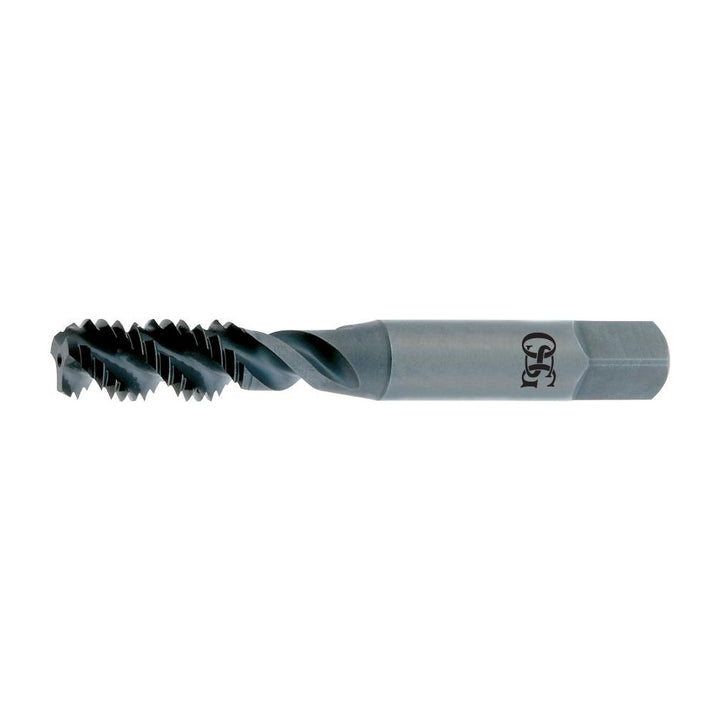

5/16-24 UNF High-Speed Steel Tap - OSG 1430600
MFR# 1430600Series 107
$29.02List $37.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size5/16-24
Description
The OSG 1430600 is a 5/16-24 UNF High-Speed Steel tap. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.129
Number of flutes3
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Threads per inch24
Thread directionRight Hand
Thread length0.78
Thread limitH3
Thread size in5/16-24
Thread standardUNF
