OSG
3/8-16 UNC High-Speed Steel Tap - OSG 1430800
MFR# 1430800Series 107
$33.71List $43.23
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
Description

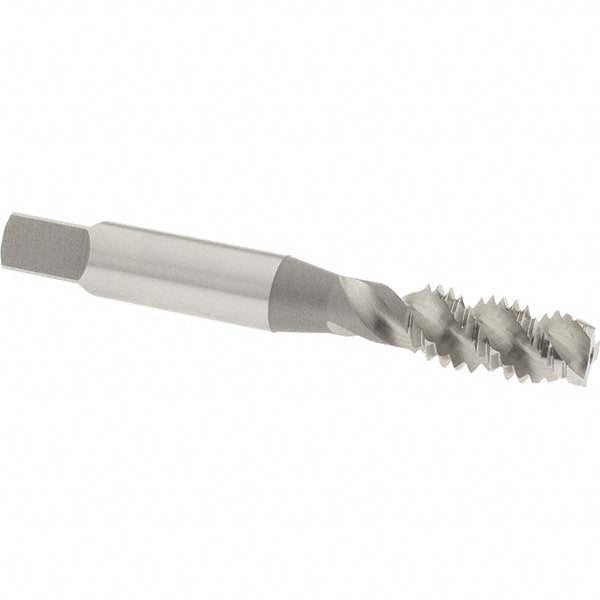

The OSG 1430800 is a 3/8-16 UNC High-Speed Steel tap. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.251
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch16
Thread directionRight Hand
Thread length0.771
Thread limitH3
Thread size in3/8-16
Thread standardUNC
