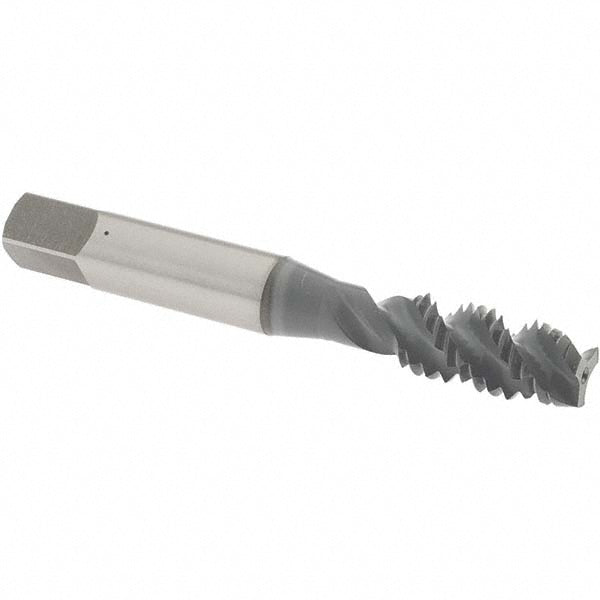

3/8-16 UNC High-Speed Steel Tap, elektraLUBE - OSG 1430802
MFR# 1430802Series 107
$35.75List $45.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-16
CoatingelektraLUBE
Description
The OSG 1430802 is a 3/8-16 UNC High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)28.600000000000005
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter (mm)8.772
Square length (mm)9.525
Square size (mm)6.452
Thread directionRight Hand
Thread limitH3
Thread size in3/8-16
Thread standardUNC
