OSG

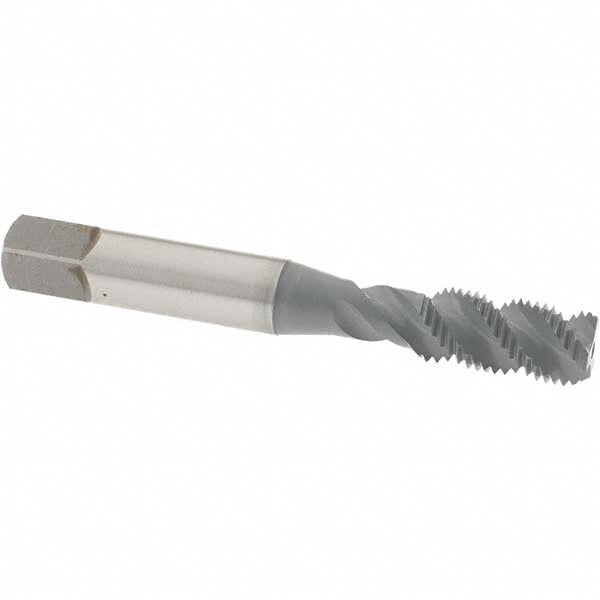

3/8-24 UNF High-Speed Steel Tap, elektraLUBE - OSG 1431102
MFR# 1431102Series 107
$35.75List $45.86
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingelektraLUBE
Description
The OSG 1431102 is a 3/8-24 UNF High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.933
Number of flutes3
Overall length in2-15/16
Shank diameter0.22
Thread directionRight Hand
Thread limitH3
Thread size in3/8-24
Thread standardUNF
