OSG

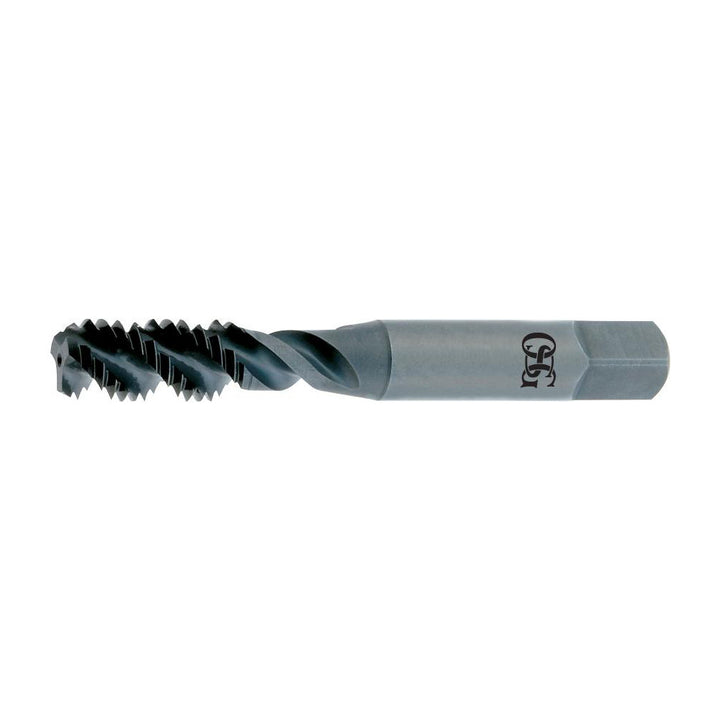

3/8-24 UNF High-Speed Steel Tap, TiCN - OSG 1431108
MFR# 1431108Series 107
$44.65List $57.26
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size3/8-24
CoatingTiCN
Description
The OSG 1431108 is a 3/8-24 UNF High-Speed Steel tap with a TiCN finish. 3 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishTiCN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.251
Number of flutes3
Overall length in2-15/16
OversizeNo
Shank diameter0.381
Square length0.4375
Square size0.286
Threads per inch24
Thread directionRight Hand
Thread length0.771
Thread limitH3
Thread size in3/8-24
Thread standardUNF
