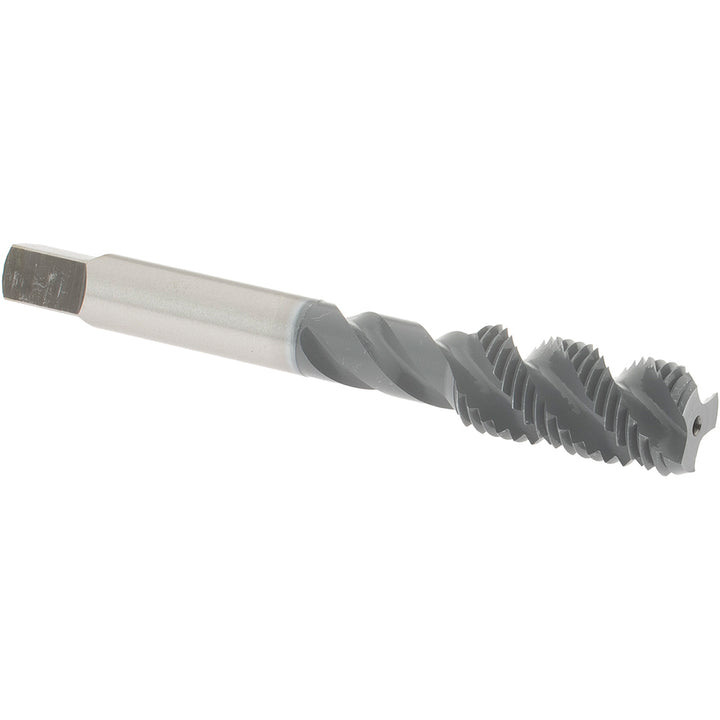

7/16-20 UNF High-Speed Steel Tap, elektraLUBE - OSG 1431702
MFR# 1431702Series 107
$52.88List $67.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size7/16-20
CoatingelektraLUBE
Description
The OSG 1431702 is a 7/16-20 UNF High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferBottoming
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length0.996
Number of flutes3
Overall length in3-5/32
OversizeNo
Shank diameter0.255
Thread directionRight Hand
Thread limitH3
Thread size in7/16-20
Thread standardUNF
