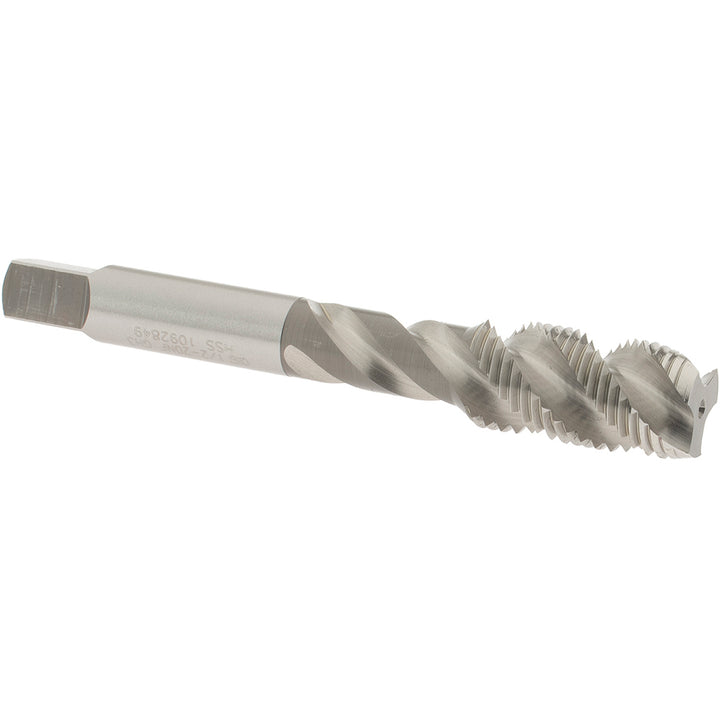

1/2-20 UNF High-Speed Steel Tap - OSG 1432400
MFR# 1432400Series 107
$59.40List $76.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
Description
The OSG 1432400 is a 1/2-20 UNF High-Speed Steel tap. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length1.929
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter0.367
Square length0.4375
Square size0.275
Threads per inch20
Thread directionRight Hand
Thread length0.96
Thread limitH3
Thread size in1/2-20
Thread standardUNF
