OSG

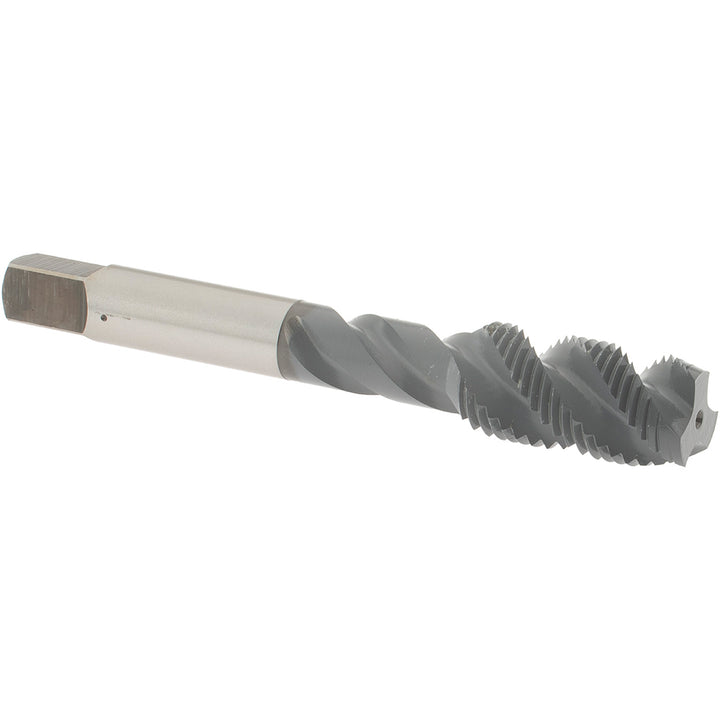

1/2-20 UNF High-Speed Steel Tap, elektraLUBE - OSG 1432402
MFR# 1432402Series 107
$62.31List $79.92
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
Thread size1/2-20
CoatingelektraLUBE
Description
The OSG 1432402 is a 1/2-20 UNF High-Speed Steel tap with a elektraLUBE finish. 3 flutes.
Specifications
ChamferPlug
Class of fit3B
Coating finishelektraLUBE
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)31.8
Number of flutes3
Overall length in3-3/8
OversizeNo
Shank diameter (mm)9.6774
Square length (mm)11.1125
Square size (mm)7.2644
Thread directionRight Hand
Thread limitH3
Thread size in1/2-20
Thread standardUNF
