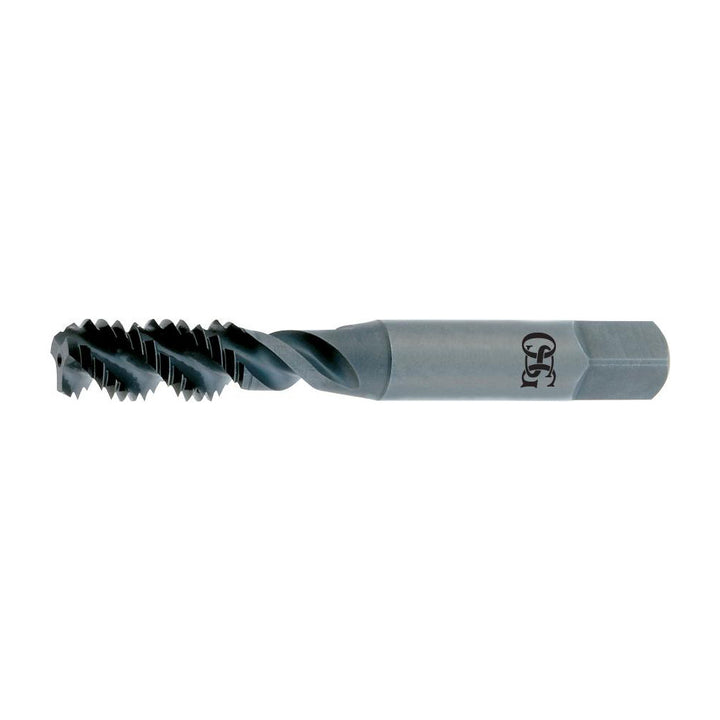

5/8-18 UNF High-Speed Steel Tap - OSG 1433200
MFR# 1433200Series 107
$104.60List $134.16
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/8-18
Description
The OSG 1433200 is a 5/8-18 UNF High-Speed Steel tap. 4 flutes.
Specifications
ChamferPlug
Class of fit3B
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.129
Number of flutes4
Overall length in3-13/16
OversizeNo
Shank diameter0.48
Square length0.5625
Square size0.36
Threads per inch18
Thread directionRight Hand
Thread length1.11
Thread limitH3
Thread size in5/8-18
Thread standardUNF
