OSG

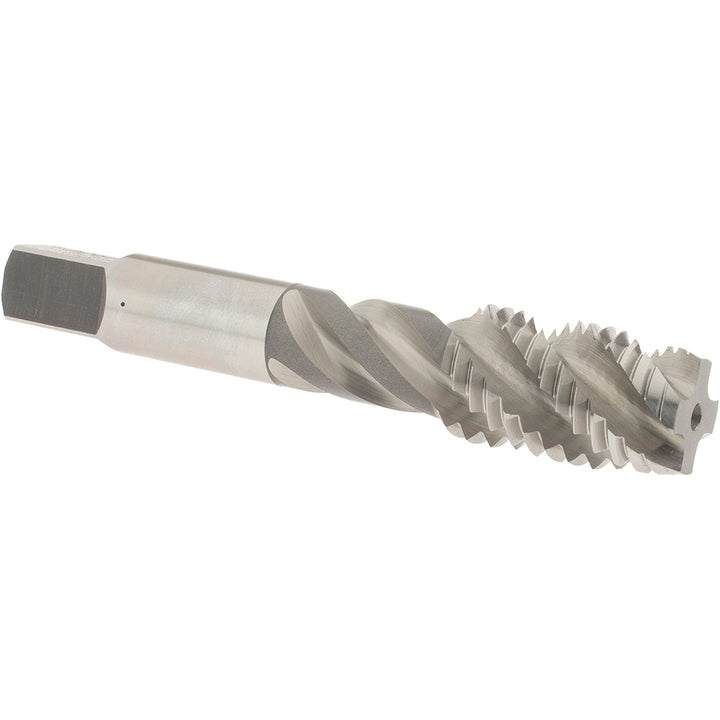

3/4-10 UNC High-Speed Steel Tap - OSG 1433600
MFR# 1433600Series 107
$134.49List $172.49
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
Description
The OSG 1433600 is a 3/4-10 UNC High-Speed Steel tap. 4 flutes.
Specifications
ChamferPlug
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length2.429
Number of flutes4
Overall length in4-1/4
OversizeNo
Shank diameter0.59
Square length0.6875
Square size0.442
Threads per inch10
Thread directionRight Hand
Thread length1.24
Thread limitH3
Thread size in3/4-10
Thread standardUNC
