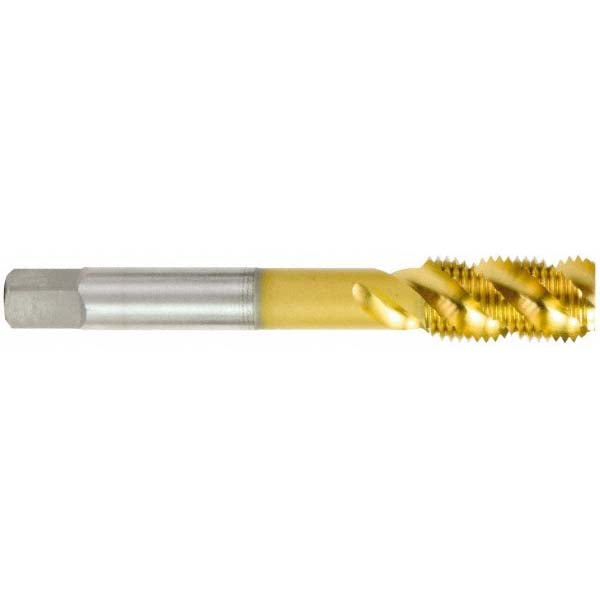

3/4-10 UNC High-Speed Steel Tap, TiN - OSG 1433705
MFR# 1433705Series 107
$151.02List $193.69
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-10
CoatingTiN
Description
The OSG 1433705 is a 3/4-10 UNC High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ChamferBottoming
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Number of flutes4
Overall length in4-1/4
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5900
Square length0.6875
Square size0.4420
Threads per inch10
Thread directionRight Hand
Thread length1.2400
Thread limitH3
Thread size in3/4-10
Thread standardUNC
