OSG

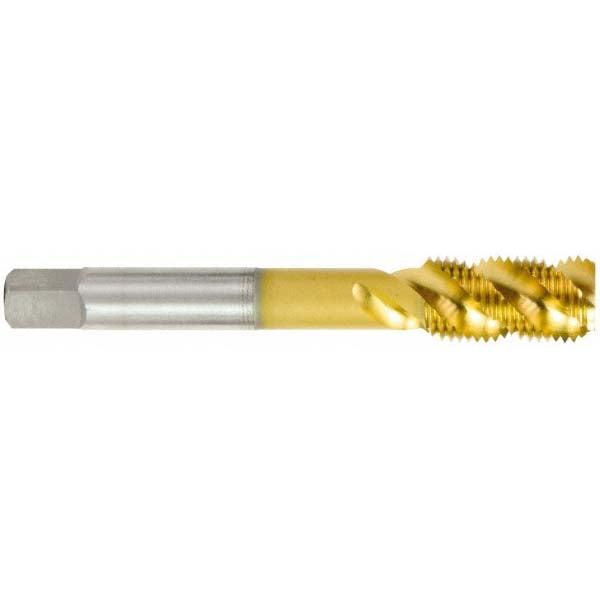

3/4-16 UNF High-Speed Steel Tap, TiN - OSG 1434105
MFR# 1434105Series 107
$135.55List $173.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size3/4-16
CoatingTiN
Description
The OSG 1434105 is a 3/4-16 UNF High-Speed Steel tap with a TiN finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishTiN
Coolant throughNo
Flute directionRight Hand
Flute styleSpiral
Helix angle50
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Aluminum; Cast Iron; High-Carbon Steel; Low-Carbon Steel; Medium-Carbon Steel
Neck length (mm)18.00
Number of flutes4
Overall length in4-1/4
Primary workpiece materialSteel; Cast Iron; Aluminum & Non-Ferrous
Shank diameter0.5900
Square length0.6875
Square size0.4420
Threads per inch16
Thread directionRight Hand
Thread length1.2400
Thread limitH3
Thread size in3/4-16
Thread standardUNF
