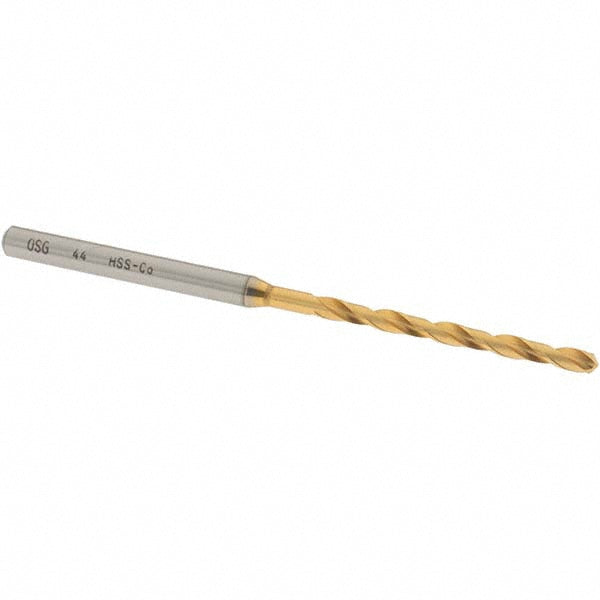

#44 Cobalt Drill Bit, TiN, 130° point - OSG 15086005
MFR# 15086005Series 1500
$18.18List $23.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15086005 is a #44 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1-1/8 flute length, 2-3/8 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.014 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.0860
Drill bit size range0.0500 - 0.1000
Drill bit size wire#44
Drill point angle degrees130
Flute length in1-1/8
Flute typeSpiral
Number of flutes2
Overall length in2-3/8
Primary workpiece materialSteel; Alloy Steel
Shank diameter in1/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
