OSG

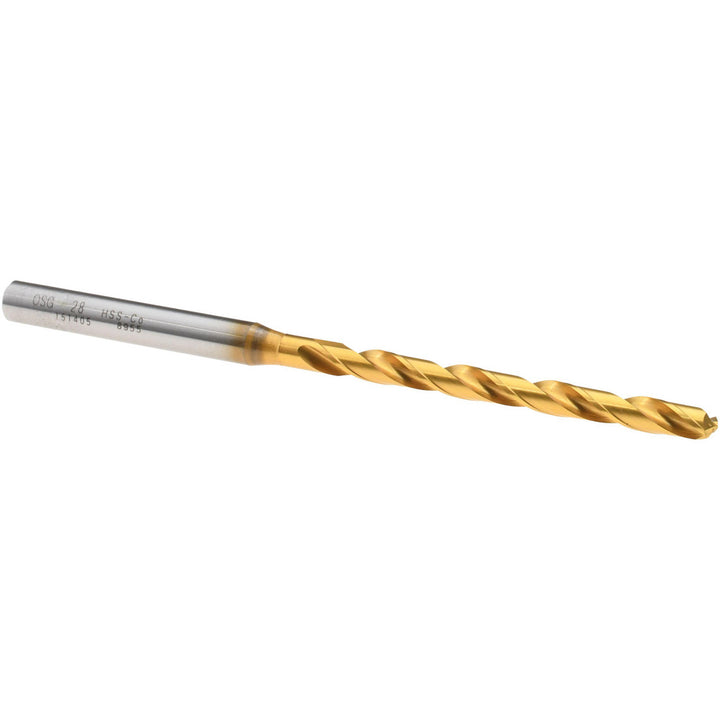

#28 Cobalt Drill Bit, TiN, 130° point - OSG 15140505
MFR# 15140505Series 1500
$24.36List $31.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15140505 is a #28 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1-3/4 flute length, 3-3/16 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit materialCobalt
Drill bit size0.1405
Drill bit size range0.1000 - 0.1500
Drill bit size wire#28
Drill point angle degrees130
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in3-3/16
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
