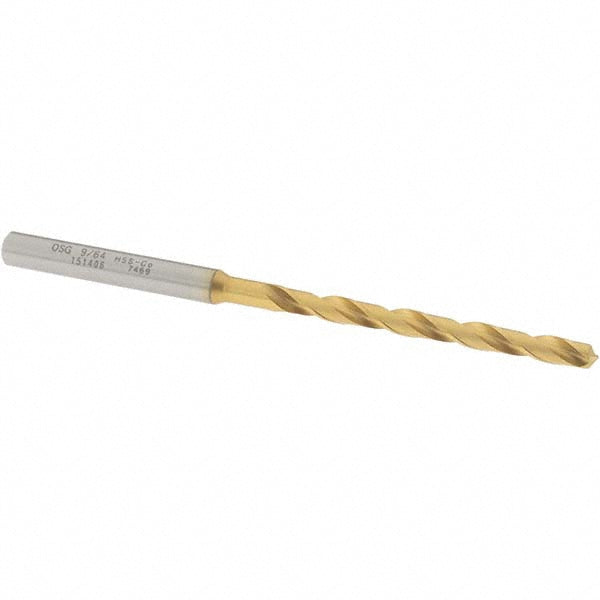

9/64" Cobalt Drill Bit, TiN, 130° point - OSG 15140605

OSG

9/64" Cobalt Drill Bit, TiN, 130° point - OSG 15140605

MFR# 15140605Series 1500

$24.36List $31.24 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/64
Flutes2
CoatingTiN

Description

The OSG 15140605 is a 9/64" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 1-3/4 flute length, 3-3/16 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in9/64
Drill bit size range0.1000 - 0.1500
Drill point angle degrees130
Flute length in1-3/4
Flute typeSpiral
Number of flutes2
Overall length in3-3/16
Point typeX-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/16
Shank length in1-3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
