OSG
#24 Cobalt Drill Bit, TiN, 130° point - OSG 15152005
MFR# 15152005Series 1500
$25.49List $32.70
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description

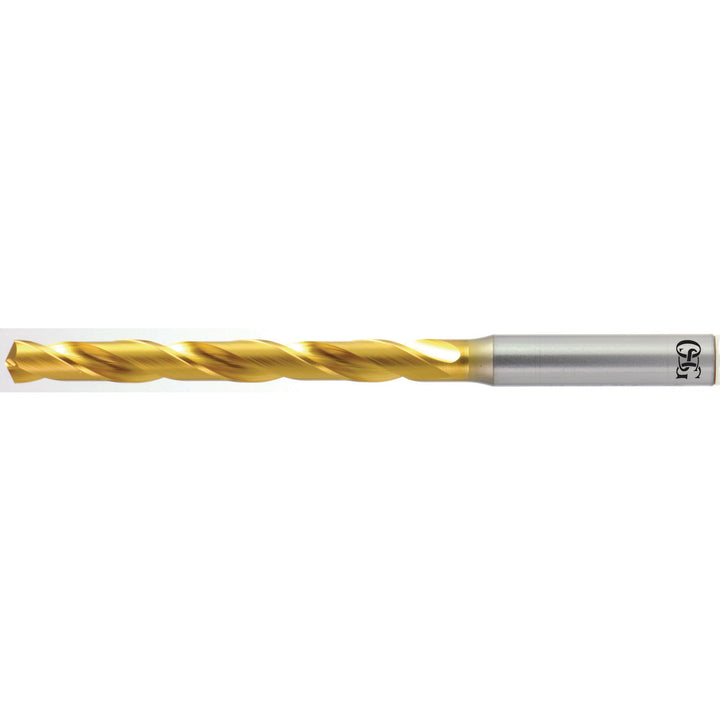

The OSG 15152005 is a #24 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2 flute length, 3-7/16 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.1520
Drill bit size range0.1500 - 0.2000
Drill bit size wire#24
Drill point angle degrees130
Flute length in2
Flute typeSpiral
Number of flutes2
Overall length in3-7/16
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningX-Thinned
