OSG

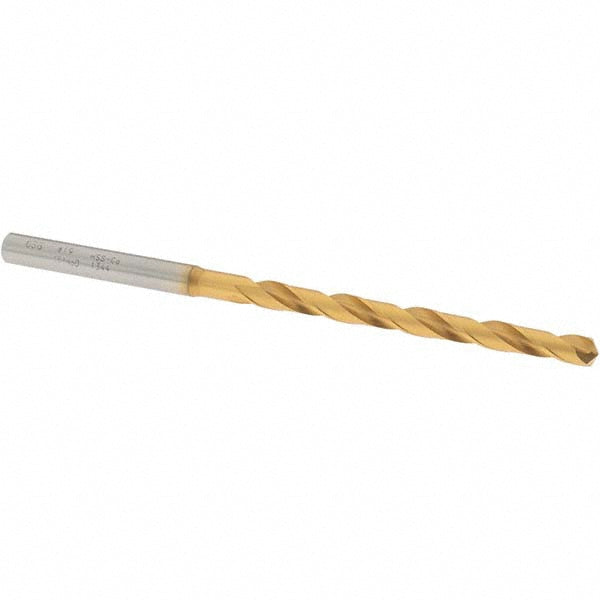

#19 Cobalt Drill Bit, TiN, 130° point - OSG 15166005
MFR# 15166005Series 1500
$27.85List $35.72
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15166005 is a #19 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2-1/8 flute length, 3-9/16 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.1660
Drill bit size range0.1500 - 0.2000
Drill bit size wire#19
Drill point angle degrees130
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-9/16
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
