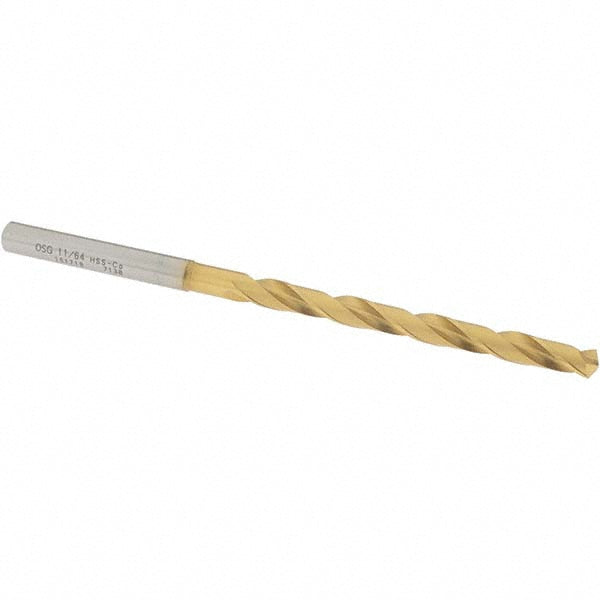

11/64" Cobalt Drill Bit, TiN, 130° point - OSG 15171905

OSG

11/64" Cobalt Drill Bit, TiN, 130° point - OSG 15171905

MFR# 15171905Series 1500

$27.85List $35.72 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size11/64
Flutes2
CoatingTiN

Description

The OSG 15171905 is a 11/64" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2-1/8 flute length, 3-9/16 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in11/64
Drill bit size range0.1500 - 0.2000
Drill point angle degrees130
Flute length in2-1/8
Flute typeSpiral
Number of flutes2
Overall length in3-9/16
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/16
Shank length in1-3/16
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
