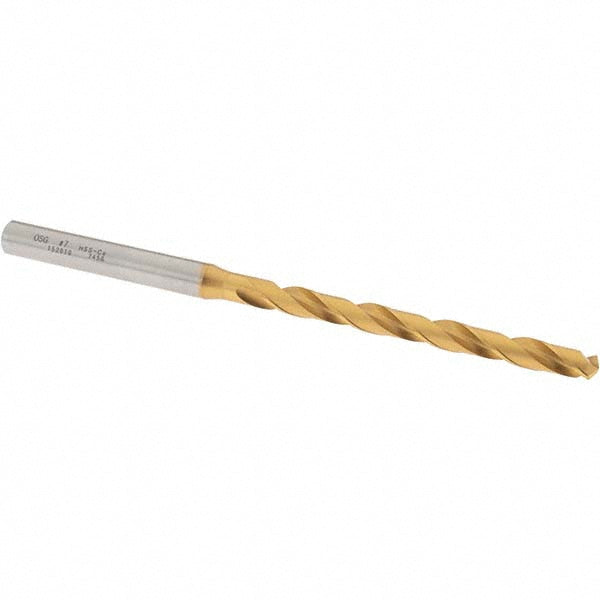

#7 Cobalt Drill Bit, TiN, 130° point - OSG 15201005
MFR# 15201005Series 1500
$30.18List $38.71
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15201005 is a #7 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2-7/16 flute length, 4-1/4 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.2010
Drill bit size range0.2000 - 0.2500
Drill bit size wire#7
Drill point angle degrees130
Flute length in2-7/16
Flute typeSpiral
Number of flutes2
Overall length in4-1/4
Primary workpiece materialSteel; Alloy Steel
Shank diameter in1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
