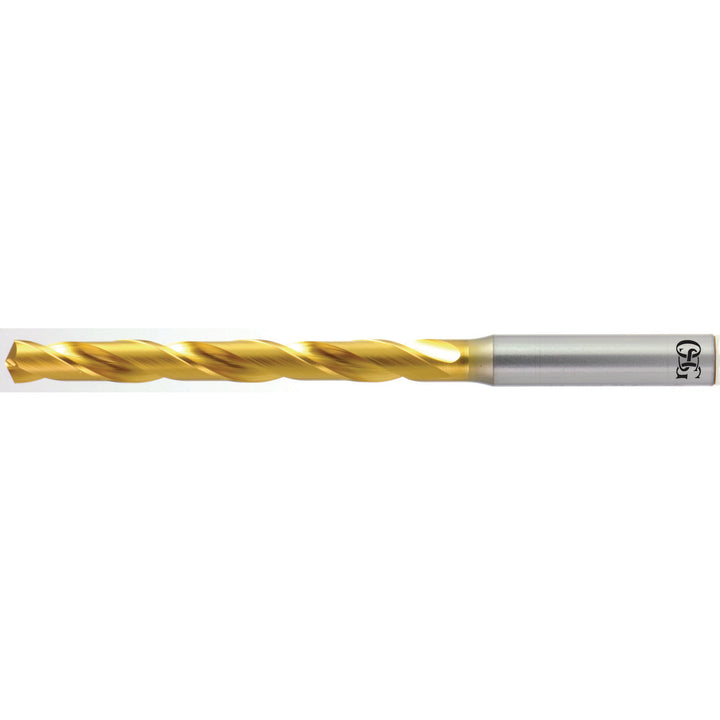

#1 Cobalt Drill Bit, TiN, 130° point - OSG 15228005
MFR# 15228005Series 1500
$41.11List $52.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15228005 is a #1 Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2-5/8 flute length, 4-7/16 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.018 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.2280
Drill bit size range0.2000 - 0.2500
Drill bit size wire#1
Drill point angle degrees130
Flute length in2-5/8
Flute typeSpiral
Number of flutes2
Overall length in4-7/16
Primary workpiece materialSteel; Alloy Steel
Shank diameter in1/4
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
