OSG

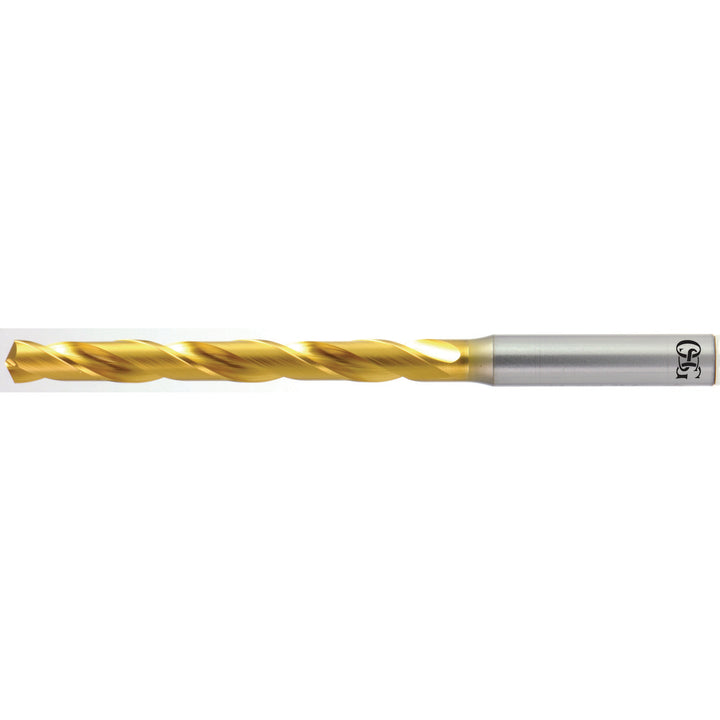

Letter L Cobalt Drill Bit, TiN, 130° point - OSG 15290005
MFR# 15290005Series 1500
$57.80List $74.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingTiN
Description
The OSG 15290005 is a Letter L Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 2-15/16 flute length, 4-3/4 overall length. Series 1500.
Specifications
Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.2900
Drill bit size letterL
Drill bit size range0.2500 - 0.3000
Drill point angle degrees130
Flute length in2-15/16
Flute typeSpiral
Number of flutes2
Overall length in4-3/4
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
