Letter U Cobalt Drill Bit, TiN, 130° point - OSG 15368005

OSG

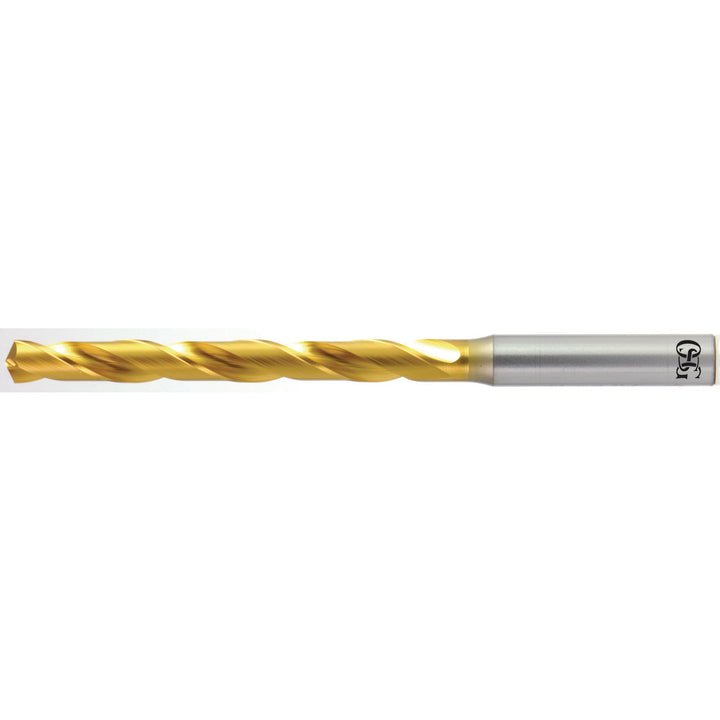

Letter U Cobalt Drill Bit, TiN, 130° point - OSG 15368005

MFR# 15368005Series 1500

$96.28List $123.48 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiN

Description

The OSG 15368005 is a Letter U Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 3-5/8 flute length, 5-7/16 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit materialCobalt
Drill bit size0.3680
Drill bit size letterU
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute length in3-5/8
Flute typeSpiral
Number of flutes2
Overall length in5-7/16
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/8
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.
