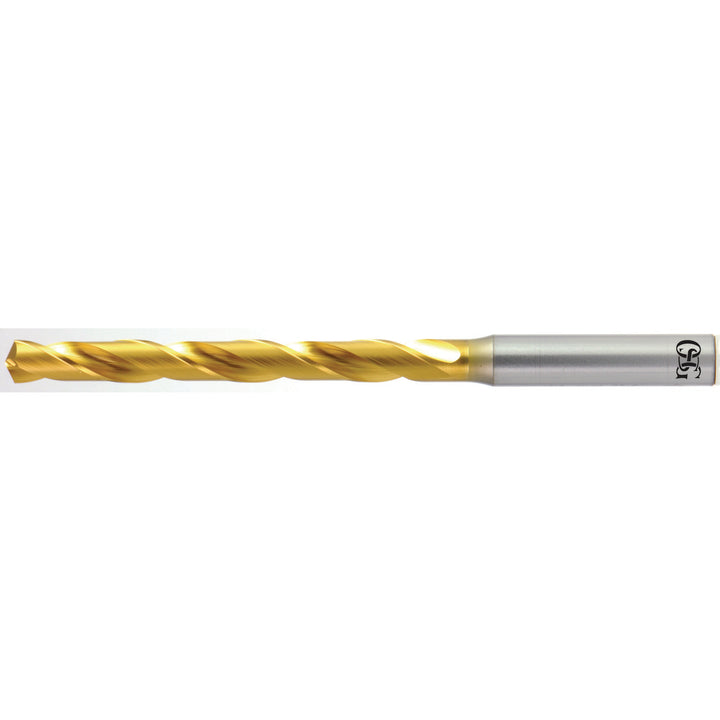

25/64" Cobalt Drill Bit, TiN, 130° point - OSG 15390605

OSG

25/64" Cobalt Drill Bit, TiN, 130° point - OSG 15390605

MFR# 15390605Series 1500

$89.34List $114.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size25/64
Flutes2
CoatingTiN

Description

The OSG 15390605 is a 25/64" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 3-3/4 flute length, 5-27/32 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.022 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in25/64
Drill bit size range0.3500 - 0.4000
Drill point angle degrees130
Flute length in3-3/4
Flute typeSpiral
Number of flutes2
Overall length in5-27/32
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in1/2
Shank length in1-25/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
