1/2" Cobalt Drill Bit, TiN, 130° point - OSG 15500005

OSG

1/2" Cobalt Drill Bit, TiN, 130° point - OSG 15500005

MFR# 15500005Series 1500

$132.22List $169.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size1/2
Flutes2
CoatingTiN

Description

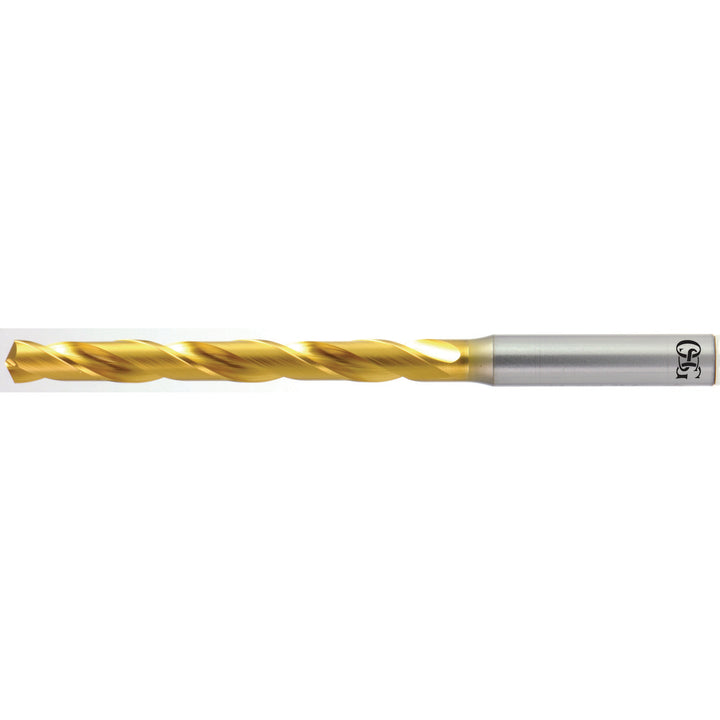

The OSG 15500005 is a 1/2" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 4-1/2 flute length, 6-19/32 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in1/2
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute length in4-1/2
Flute typeSpiral
Number of flutes2
Overall length in6-19/32
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in1/2
Shank length in1-25/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
