17/32" Cobalt Drill Bit, TiN, 130° point - OSG 15531205

OSG

17/32" Cobalt Drill Bit, TiN, 130° point - OSG 15531205

MFR# 15531205Series 1500

$225.73List $289.51 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size17/32
Flutes2
CoatingTiN

Description

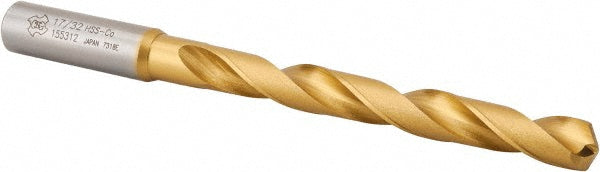

The OSG 15531205 is a 17/32" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 4-13/16 flute length, 7-3/16 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in17/32
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute length in4-13/16
Flute typeSpiral
Number of flutes2
Overall length in7-3/16
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in5/8
Shank length in1-29/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

Spec-matched alternates load as the catalog fills in. Meanwhile, browse the End Mills collection and filter by diameter, flutes & length of cut.
