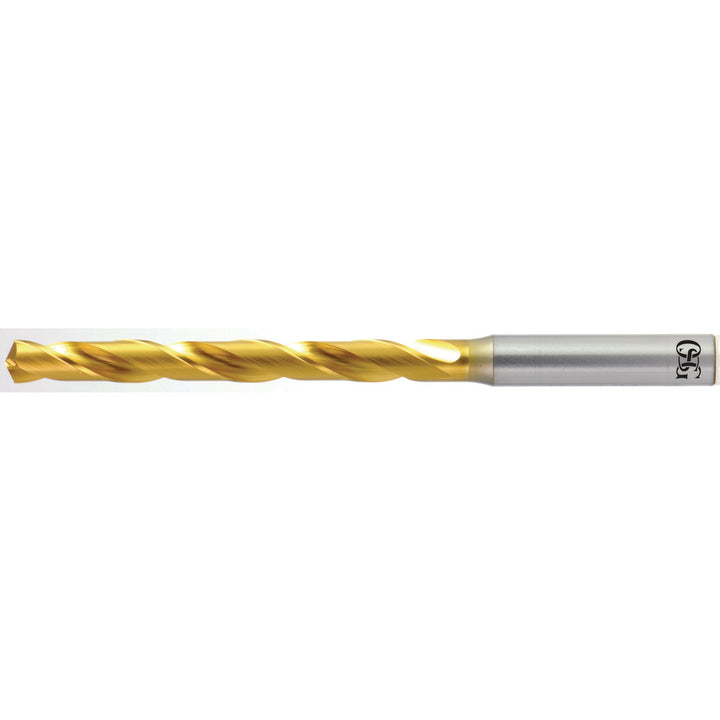

9/16" Cobalt Drill Bit, TiN, 130° point - OSG 15562505

OSG

9/16" Cobalt Drill Bit, TiN, 130° point - OSG 15562505

MFR# 15562505Series 1500

$236.61List $303.47 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size9/16
Flutes2
CoatingTiN

Description

The OSG 15562505 is a 9/16" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 4-13/16 flute length, 7-3/16 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in9/16
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute length in4-13/16
Flute typeSpiral
Number of flutes2
Overall length in7-3/16
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in5/8
Shank length in1-29/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
