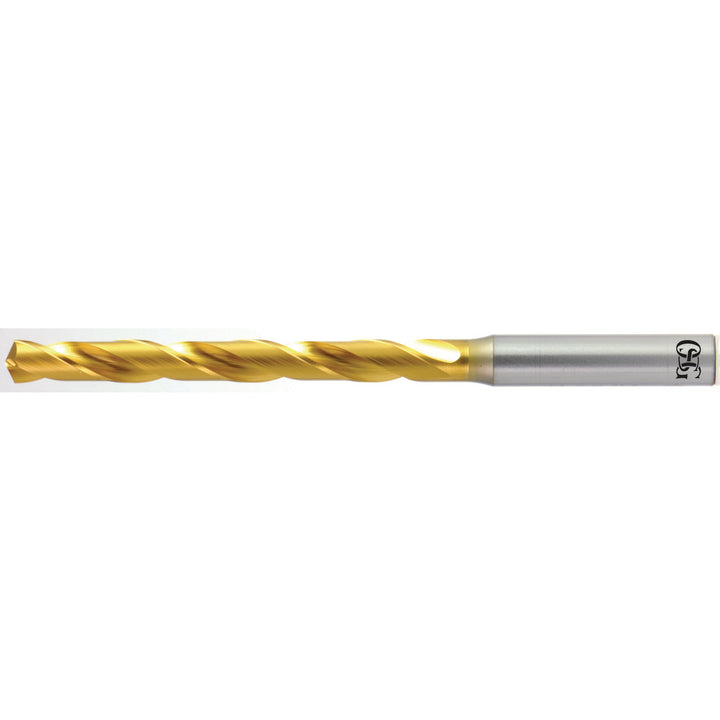

5/8" Cobalt Drill Bit, TiN, 130° point - OSG 15625005

OSG

5/8" Cobalt Drill Bit, TiN, 130° point - OSG 15625005

MFR# 15625005Series 1500

$271.46List $348.16 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size5/8
Flutes2
CoatingTiN

Description

The OSG 15625005 is a 5/8" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 5-3/16 flute length, 7-27/32 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.027 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in5/8
Drill bit size range0.5000 - 0.6500
Drill point angle degrees130
Flute length in5-3/16
Flute typeSpiral
Number of flutes2
Overall length in7-27/32
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in3/4
Shank length in2-1/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
