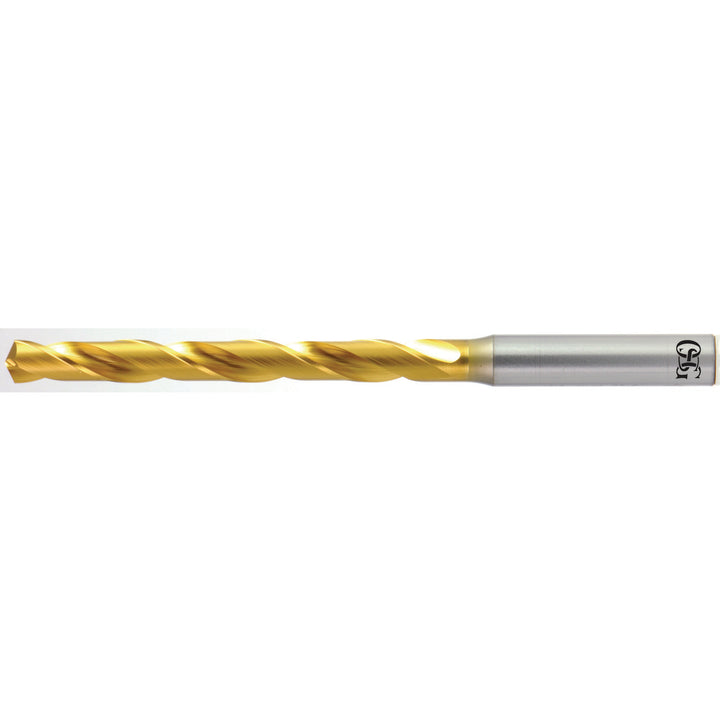

3/4" Cobalt Drill Bit, TiN, 130° point - OSG 15750005

OSG

3/4" Cobalt Drill Bit, TiN, 130° point - OSG 15750005

MFR# 15750005Series 1500

$364.23List $467.15 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Drill size3/4
Flutes2
CoatingTiN

Description

The OSG 15750005 is a 3/4" Cobalt drill bit with a TiN finish, 130° point. Suited for steel, alloy steel. 5-7/8 flute length, 8-17/32 overall length. Series 1500.

Specifications

Coating finishTiN
Coolant throughNo
Cutting directionRight Hand
Drill bit diameter tolerance+0 to -0.033 mm
Drill bit finish coatingTitanium Nitride
Drill bit gradeHigh Performance
Drill bit materialCobalt
Drill bit size in3/4
Drill bit size range0.6500+
Drill point angle degrees130
Flute length in5-7/8
Flute typeSpiral
Number of flutes2
Overall length in8-17/32
Point typeR-Thinned
Primary workpiece materialSteel; Alloy Steel
Shank diameter in7/8
Shank length in2-1/32
Shank typeStraight-Cylindrical
Spiral typeRegular
Tool applicationBlind Hole; Cross Hole; Drilling; Self-Centering
Tool performanceHigh Performance
Web configurationTapered
Web thinningR-Thinned
