OSG

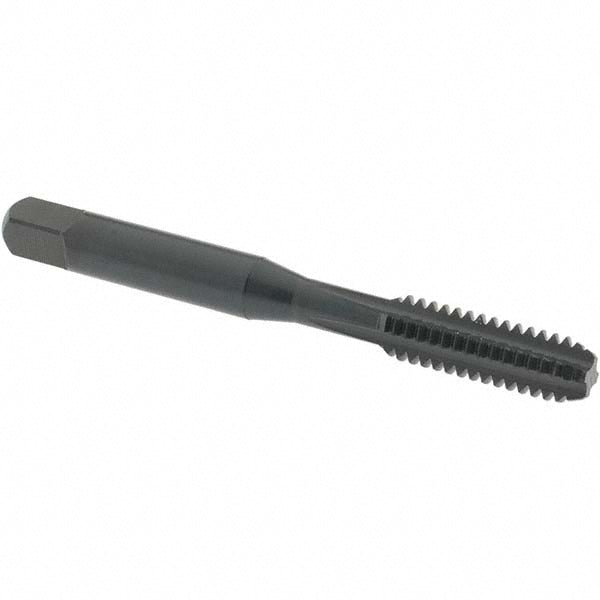

1/4-20 UNC High-Speed Steel Standard Tap, Nitride - OSG 1600207
MFR# 1600207Series 101C
$8.42List $10.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size1/4-20
CoatingNitride
Description
The OSG 1600207 is a 1/4-20 UNC High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferBottoming
Class of fit3B
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.1890
Number of flutes4
Overall length in2-1/2
OversizeNo
Shank diameter0.255
Square length0.3125
Square size0.191
Tap typeStandard
Threads per inch20
Thread directionRight Hand
Thread length in1
Thread limitH3
Thread size in1/4-20
Thread standardUNC
