OSG
5/16-18 UNC High-Speed Steel Standard Tap, Nitride - OSG 1600907
MFR# 1600907Series 101C
$11.74List $15.06
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes4
Thread size5/16-18
CoatingNitride
Description

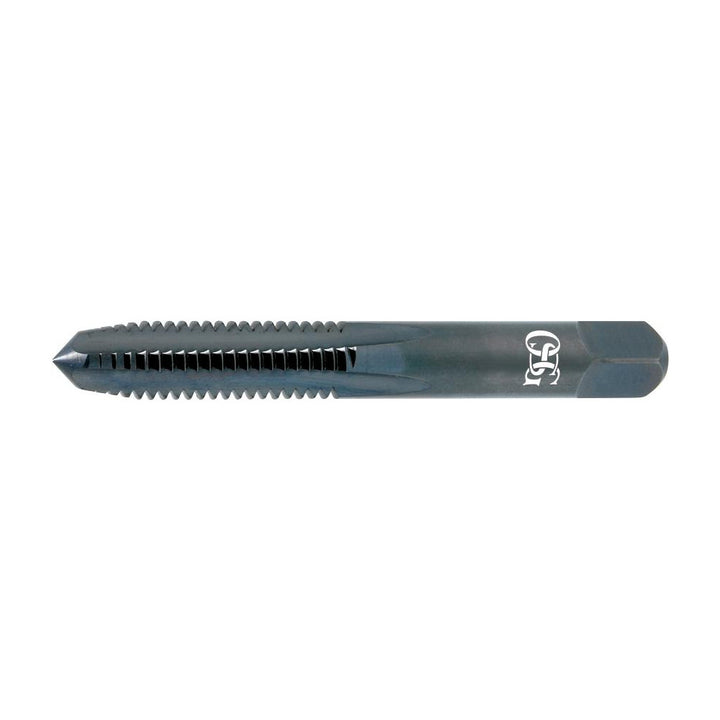

The OSG 1600907 is a 5/16-18 UNC High-Speed Steel Standard tap with a Nitride finish. 4 flutes.
Specifications
ChamferPlug
Class of fit2B
Coating finishNitride
Coolant throughNo
MaterialHigh-Speed Steel
Material applicationAluminum; Cast Iron
Neck length1.3230
Number of flutes4
Overall length in2-23/32
OversizeNo
Shank diameter0.318
Square length0.375
Square size0.238
Tap typeStandard
Threads per inch18
Thread directionRight Hand
Thread length in1-1/8
Thread limitH5
Thread size in5/16-18
Thread standardUNC
